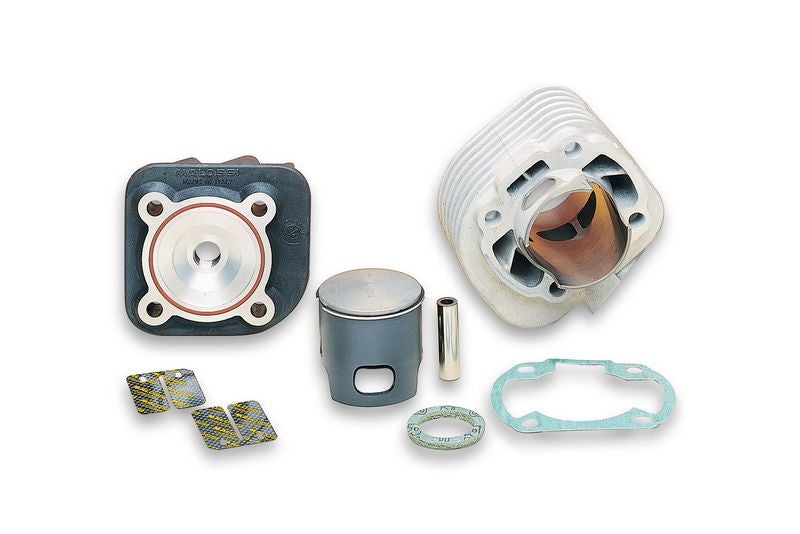

Description CYLINDER KIT MHR TECHNICAL FEATURES CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HVO, 1/5) and excellent resistance to wear. Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone). Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held. PISTON Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation. External coating: graphite coating that guarantees a very low friction coefficient Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force. Ring: 1 mm nodular-cast-iron single ring with rectangular cross section and hard-chromium coating on outer surface. PISTON RINGS Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface. HEAD Material: special alluminium alloy with a very high heat exchange coefficient. Geometry of heat exchange surfaces recalculated and increased. Combustion chamber completely-designed to obtain a high compression ratio with a very high turbolece. Machining: numerically controlled machines. Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use Compatible brands and models AEON MOTOR COBRA 50 2T (AT70) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 APRILIA SR 50 2T 1994-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 APRILIA RALLY 50 2T (MINARELLI) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 APRILIA SCARABEO 50 2T (MINARELLI) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 APRILIA SONIC 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 APRILIA SR WWW 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BENELLI 491 GT 50 2T (MINARELLI) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BENELLI K2 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BENELLI NAKED 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BENELLI PEPE LX 50 2T euro 2 (QJ1E40QMB-4) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BENELLI QuattronoveX 50 2T euro 2 To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BETA ARK 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BETA QUADRA 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BSV AX 50 To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 BSV GZ 50 To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 CPI ARAGON GP 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 CPI HUSSAR 50 2T 2003-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 CPI OLIVER 50 2T 2003-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 CPI POPCORN 50 2T 2003-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 EXPLORER CRACKER 50 2T 2003-> (GE 1E 400 MB) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 GARELLI TIESSE 50R 50 2T euro 2 (1E40QMB) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 HUPPER MONTECARLO 30 50 2T (1E40QMB) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 KEEWAY F-ACT 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 KEEWAY GOCCIA 50 2T (KW1E40QMB-4 ) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 KEEWAY HURRICANE 50 2T euro 2 (KW1E40QMB) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 KEEWAY MATRIX 50 2T (KW1E40QMB-4) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 KEEWAY PIXEL 50 2T euro 2 (KW1E40QMB ) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 KEEWAY RY8 50 2T (KW1E40QMB-4 ) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009 …
